How To Choose Pharmaceutical Excipients For Poorly Soluble APIs

Over 70% of current pharmaceutical pipeline candidates fall into BCS Class II or IV. These promising molecules exhibit exceptionally low aqueous solubility. Overcoming this poor solubility is no longer just an early discovery challenge. It is now a critical commercialization hurdle. The margin of error in modern formulation development continues shrinking rapidly. Selecting the right Pharmaceutical excipients is paramount. You must advance molecules from the lab bench to commercial manufacturing safely. You cannot compromise long-term stability, patient safety, or tight development timelines. This guide provides a structured, evidence-based framework. We will help you evaluate and shortlist functional materials effectively. You will learn how to maximize API bioavailability while ensuring strict regulatory compliance. We will also explore manufacturability and scalability strategies for poorly soluble drugs.

Key Takeaways

• Matching Formulation to Mechanism: Excipient selection must be driven by the API’s specific physicochemical limitations (e.g., dissolution rate vs. thermodynamic solubility).

• Scale-Up Realities: A drug solubility excipient that performs well in early-phase lab trials must be evaluated for commercial manufacturability and batch-to-batch consistency.

• Regulatory & Safety Boundaries: All selected materials must align with target administration routes (especially critical in parenteral/injection formulation) and fall within acceptable regulatory limits (e.g., FDA Inactive Ingredient Database).

• Vendor Viability: Long-term success relies on excipient suppliers with robust Quality by Design (QbD) support, secure supply chains, and transparent audit trails.

Framing the Problem: How Solubility Dictates Formulation Strategy

BCS Class Alignment

Categorize the active ingredient early in development. The Biopharmaceutics Classification System (BCS) guides this initial process. Class II drugs have low solubility but high intestinal permeability. Class IV drugs face immense hurdles in both solubility and permeability. You must determine the exact molecular bottleneck. Is it a slow dissolution rate? Or is absolute thermodynamic solubility the main barrier? Answering these questions dictates your entire formulation strategy. A simple micronization process might fix dissolution rate issues. However, true thermodynamic barriers require advanced molecular interventions.

Defining Success Criteria

Formulation success goes far beyond initial lab dissolution. A truly successful formulation maintains supersaturation in the gastrointestinal tract. It must prevent dangerous in vivo precipitation. If the drug crashes out of solution, absorption halts immediately. We measure true success by sustained systemic exposure. You must design the matrix to release the active compound at the optimal biological absorption window.

The Cost of Misalignment

Misaligned materials carry massive business risks. Late-stage formulation failures compromise clinical trial data. They delay crucial market entry timelines significantly. Suboptimal choices also increase the cost of goods sold (COGS). You might require higher drug loading just to achieve baseline therapeutic targets. Wasting expensive active pharmaceutical ingredients damages overall project viability. Choosing correctly the first time preserves capital and accelerates patient access.

Evaluating Core Solution Categories for Poorly Soluble Drugs

Solid Dispersion Polymers

Create Amorphous Solid Dispersions (ASDs) to enhance solubility dramatically. Hot-melt extrusion (HME) and spray drying remain the most common manufacturing methods. Specialized polymers stabilize the unstable amorphous state. The polymer matrix restricts molecular mobility. This restriction prevents the drug from reverting to its crystalline form. You must evaluate the glass transition temperature (Tg) carefully. Check polymer thermal stability before starting any high-heat processing. Assess material hygroscopicity continuously. Moisture acts as a strong plasticizer. It lowers the Tg and induces premature crystallization over time.

Lipid-Based Formulations (LBFs)

Lipid-Based Formulations (LBFs) offer another excellent pathway. They often use Self-Emulsifying Drug Delivery Systems (SEDDS). These systems bypass traditional dissolution rate limits entirely. The drug remains fully dissolved inside microscopic lipid droplets. You must evaluate lipid digestibility in the human gut. Lipases break down triglycerides into monoglycerides. These form mixed micelles in the intestine. This process vastly increases the absorption surface area. Test the maximum drug loading capacity rigorously. Assess long-term oxidation risks. Unsaturated lipids degrade easily under standard storage conditions.

Complexation Technologies

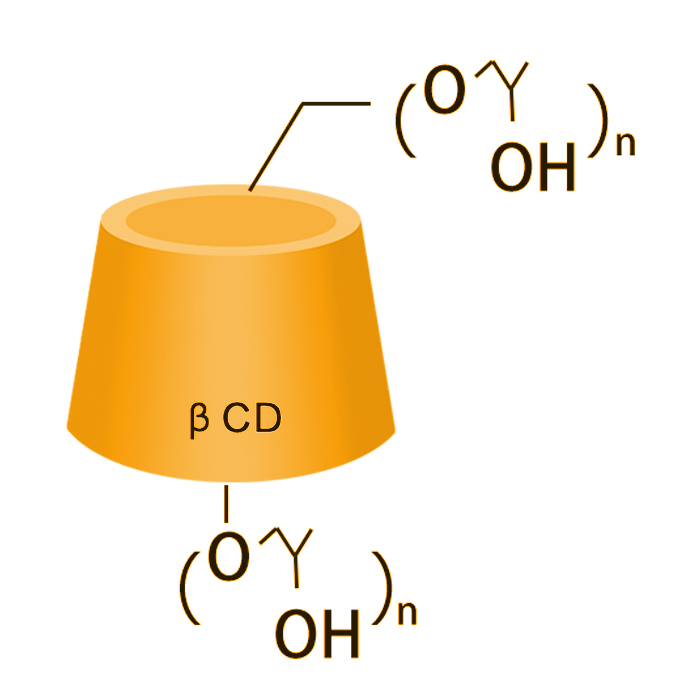

Complexation safely encapsulates the hydrophobic API. It places the target molecule inside a protective hydrophilic cavity. A cyclodextrin excipient works perfectly for this mechanism. Evaluate internal cavity size and chemical binding affinity. If the binding is too strong, the drug will not release. If it is too weak, the drug precipitates prematurely. Choose between HP-β-CD and SBECD carefully. Your final administration route often decides this choice automatically. Oral routes allow broader options. Systemic routes require highly purified, specific cyclodextrin grades.

Critical Evaluation Dimensions for Pharmaceutical Excipients

Physicochemical Compatibility

Test physicochemical compatibility thoroughly during early pre-formulation. Use Differential Scanning Calorimetry (DSC) and X-ray Powder Diffraction (XRPD). These protocols validate molecular stability. Ensure the material does not induce unwanted polymorphic shifts. It must not chemically degrade the active ingredient over its shelf life. Subject the blended mixtures to accelerated stress testing. Expose them to standard ICH conditions like 40°C and 75% relative humidity. Monitor the samples for any signs of physical separation or chemical interaction.

Route of Administration Constraints

Different administration routes dictate strict safety rules. Oral solids generally allow wider safety margins. Conversely, systemic delivery requires rigorous biological control. Parenteral routes demand ultra-low endotoxins. Bioburden and osmolality limits remain completely non-negotiable. You cannot inject standard oral-grade materials safely. Systemic materials undergo intense purification processes. They must not trigger immune responses or cause hemolysis upon entering the bloodstream.

Regulatory & Compliance Lenses

Cross-reference all materials globally before final selection. Check the USP/NF, Ph. Eur., and JP pharmacopeias meticulously. Consult the FDA Inactive Ingredient Guide (IIG). The IIG specifies maximum daily intake limits based on previous clinical approvals. Exceeding established toxicity limits invites immediate clinical holds. You must justify any deviation from these established limits with extensive standalone toxicology data. This adds immense cost and time to your development pipeline.

Manufacturability and Scalability

Assess manufacturability early in the lab phase. Can the material flow well through high-speed hoppers? Evaluate flowability using the Carr's Index and Hausner Ratio. Does it compress easily into durable tablets? Some materials require highly specialized, capital-intensive equipment. Avoid complex manufacturing processes if standard blending and milling work effectively. Ensure your selected material performs consistently across different equipment scales.

Mitigating Implementation Risks in Advanced Formulations

Precipitation Upon Dilution

Drugs often crash out upon dilution in the body. The transition from a controlled dosage matrix to physiological fluids is harsh. We must evaluate precipitation inhibitors early in development. Specific polymers can maintain supersaturation long enough for adequate absorption. HPMC and PVP are excellent candidates for this role. They interfere with crystal nucleation. This interference keeps the active molecule in solution during critical gastrointestinal transit times.

Impurity Profiling

Impurity profiling prevents long-term chemical degradation. Certain material grades contain hidden reactive impurities. Peroxides, aldehydes, and trace metals are very common culprits. They readily oxidize sensitive active ingredients. We must screen incoming batches for these reactive species constantly. Demand tight specifications from your suppliers regarding reactive impurities. Do not accept standard grades for highly sensitive, oxidation-prone molecules.

Batch-to-Batch Variability

Define Critical Material Attributes (CMAs) immediately. Batch-to-batch variability quickly destroys commercial scalability. You must prevent formulation drift at all costs. Tighten your specifications for particle size distribution and total moisture content. Establish clear acceptable ranges based on actual experimental data.

Follow these best practices to mitigate variability:

1. Identify the API's primary degradation pathways before selecting any matrix.

2. Screen at least three separate lots from the same vendor during phase II.

3. Establish strict CMA boundaries before initiating pivotal clinical trials.

4. Conduct periodic audits of the manufacturer's analytical testing methods.

Shortlisting Logic and Vendor Selection Criteria

Quality and Audit Readiness

Vendor selection manages massive operational risk. You need dedicated technical partners, not just basic commodity suppliers. Evaluate them on strict EXCiPACT certification. Verify stringent cGMP adherence independently. Demand robust change-control notification (CCN) policies. Any unannounced manufacturing change can derail your regulatory approval. You need a minimum of six months advance notice for any process alterations.

Technical and QbD Support

Assess their internal technical capabilities deeply. Do they offer true Quality by Design (QbD) support? Look for comprehensive formulation data packages. They should provide complete Drug Master Files (DMFs). A detailed DMF drastically reduces your regulatory filing burden. You absolutely need their troubleshooting expertise during scale-up. An experienced vendor can diagnose mixing anomalies or extrusion failures quickly.

Supply Chain Security

Supply chain security ensures long-term market viability. Geopolitical risks threaten global material availability daily. Evaluate dual-sourcing feasibility early in development. Specialized materials often carry exceptionally long lead times. You cannot halt a commercial manufacturing line due to a single delayed shipment. Plan your inventory buffers accordingly. Request historical on-time delivery metrics from potential partners before signing any supply agreements.

Conclusion

Overcoming poor solubility demands a truly holistic approach. You must evaluate API characteristics, formulation mechanics, and scale-up feasibility together. We cannot rely on basic trial and error anymore. Utilizing functional materials strategically secures molecular stability and enhances systemic exposure. Precision in selection prevents costly late-stage failures.

Formulation scientists and purchasing teams must align closely today. Request technical data sheets for all shortlisted options. Initiate material compatibility screening immediately. Conduct deep supplier capability audits to verify cGMP adherence. Secure your robust supply chain before advancing to phase III clinical trials.

FAQ

Q: How does a cyclodextrin excipient improve drug solubility?

A: It uses an inclusion complex mechanism. The molecule features a hydrophobic interior and a hydrophilic exterior. The poorly soluble drug enters the hydrophobic cavity. The hydrophilic exterior then dissolves seamlessly in water. This specific utility works exceptionally well in both oral and parenteral administration routes, safely shielding the active ingredient.

Q: What are the primary excipient challenges in an injection formulation for poorly soluble APIs?

A: Systemic safety remains the absolute priority. The formulation must minimize injection site pain and tissue damage. You must maintain phase stability constantly. Doing this without relying on toxic co-solvents is incredibly difficult. Careful material selection prevents dangerous in vivo precipitation and ensures strict osmolality limits are met.

Q: How do excipients impact overall API bioavailability?

A: Functional materials translate raw solubility into actual systemic exposure. They prevent sudden precipitation in the gut. Some materials alter gastrointestinal transit time favorably. Others facilitate direct lymphatic transport. These combined actions ensure the drug reaches systemic circulation effectively, preventing the body from clearing the dose prematurely.

Q: What is the role of the FDA Inactive Ingredient Database (IID) in excipient selection?

A: The IID dictates the maximum approved dosage levels based on historical safety data. It lists allowable limits for specific materials per administration route. This database acts as a critical regulatory boundary during formulation design. Exceeding these limits often triggers immediate clinical holds and rigorous safety reviews.
