Hydroxypropyl Gamma Cyclodextrin for Drug Delivery Systems

Hydroxypropyl Gamma Cyclodextrin (HP-γ-CD), also designated as gamma-Cyclodextrin 2-hydroxypropyl ethers, is a modified cyclic oligosaccharide composed of eight α-1,4-linked glucose units. The hydroxypropyl substitution on the parent gamma-cyclodextrin molecule significantly increases aqueous solubility while preserving the larger internal cavity characteristic of gamma-cyclodextrins. With a cavity diameter approximately 0.95 nm, HP-γ-CD accommodates guest molecules too large for beta-cyclodextrin derivatives, making it particularly relevant for formulating macromolecular active pharmaceutical ingredients (APIs). This excipient finds use across pharmaceutical development, cell culture systems, and cosmetic formulation where solubilization of hydrophobic compounds is required.

Overview of Hydroxypropyl Gamma Cyclodextrin

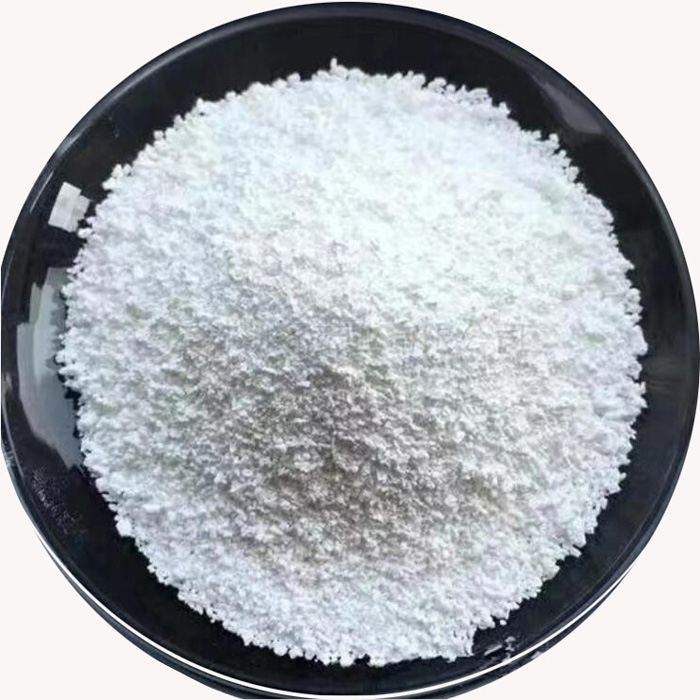

Hydroxypropyl Gamma Cyclodextrin is produced through the hydroxypropylation of native gamma-cyclodextrin, a cyclic oligosaccharide derived from starch via enzymatic conversion. The introduction of hydroxypropyl groups disrupts the crystalline structure of the native molecule, resulting in an amorphous product with markedly enhanced water solubility. Unlike native gamma-cyclodextrin, which has a water solubility of approximately 23 g per 100 mL at 25 °C, the hydroxypropylated form reaches approximately 450 mg per mL under the same conditions.

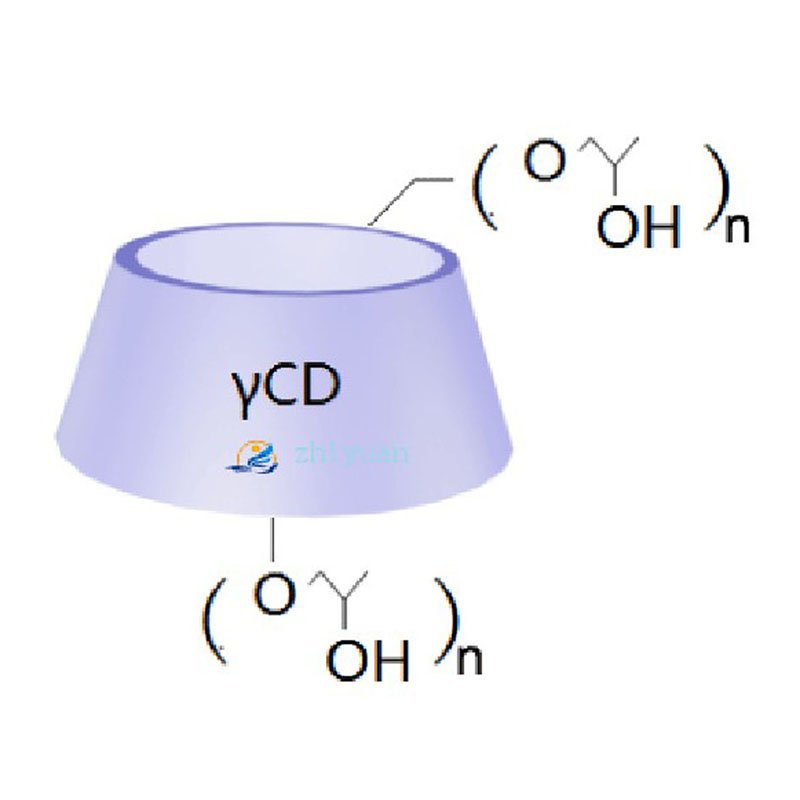

The eight-glucose ring structure creates a toroidal molecule with a hydrophobic internal cavity and a hydrophilic outer surface. This architecture enables the formation of inclusion complexes with hydrophobic guest molecules through non-covalent interactions. Compared to alpha-cyclodextrin (six glucose units) and beta-cyclodextrin (seven glucose units), gamma-cyclodextrin offers the largest internal cavity volume, allowing it to encapsulate larger molecular structures such as steroid hormones, vitamins, and certain peptide-based compounds.

Hydroxypropyl Gamma Cyclodextrin Key Properties & Specifications

Chemical & Physical Properties

Quality Specifications

Hydroxypropyl Gamma Cyclodextrin Applications in Drug Delivery

Solubility Enhancement for Hydrophobic Macromolecules

The primary application of hydroxypropyl gamma cyclodextrin in pharmaceutical formulation is solubility enhancement. The larger cavity size allows encapsulation of molecules that cannot be accommodated by beta-cyclodextrin derivatives, including certain macrocyclic compounds, steroid structures, and lipophilic vitamins. Inclusion complex formation increases the apparent aqueous solubility of these compounds, supporting the development of liquid dosage forms and improving the dissolution profile of solid oral preparations.

Stability Improvement for Sensitive Active Ingredients

Hydroxypropyl gamma cyclodextrin can protect encapsulated compounds from environmental degradation factors including light, oxidation, and hydrolysis. By sequestering the guest molecule within the cyclodextrin cavity, exposure to reactive species in the surrounding medium is reduced. This stabilization effect extends shelf life and supports formulation development for compounds with limited chemical stability.

Bioavailability Support for Poorly Soluble Compounds

For drug candidates with low aqueous solubility and correspondingly low oral bioavailability, HP-γ-CD serves as a formulation tool to improve dissolution rates. The inclusion complex dissociates upon dilution in biological fluids, releasing the active compound in a dissolved state. This mechanism supports the development of formulations for compounds classified under BCS Class II and IV, where solubility is a rate-limiting factor for absorption.

Hydroxypropyl Gamma Cyclodextrin Handling & Storage Guidelines

Hydroxypropyl gamma cyclodextrin should be handled in well-ventilated areas. Direct contact with skin and eyes should be avoided, and appropriate personal protective equipment including gloves and safety glasses is recommended during handling. Dust formation should be minimized to prevent respiratory irritation.

For storage, the material should be kept in tightly sealed containers in a cool, dry environment, protected from direct sunlight and moisture. Room temperature storage is acceptable for most applications. For long-term storage or research-grade material requiring extended stability, storage at 2 - 8 °C under inert gas atmosphere may be specified based on individual application requirements.

Hydroxypropyl Gamma Cyclodextrin Packaging & Supply

Hydroxypropyl gamma cyclodextrin is available in multiple packaging configurations to accommodate different commercial procurement volumes. Standard packaging options include sealed aluminum foil bags for smaller quantities and fiber drums with polyethylene liners for bulk orders. Custom packaging specifications can be arranged to meet specific operational requirements.

FAQ About Hydroxypropyl Gamma Cyclodextrin

What is the difference between gamma and beta cyclodextrin in drug formulation?

The primary structural difference is cavity size: gamma-cyclodextrin contains eight glucose units with a cavity diameter of approximately 0.95 nm, while beta-cyclodextrin contains seven glucose units with a cavity diameter of approximately 0.78 nm. This means gamma-cyclodextrin derivatives can encapsulate larger guest molecules. Beta-cyclodextrin derivatives are more commonly used due to their suitability for a wider range of small-molecule drugs, but gamma derivatives are preferred when the active ingredient exceeds the beta-cyclodextrin cavity capacity.

What degree of substitution does hydroxypropyl gamma cyclodextrin typically have?

Commercial hydroxypropyl gamma cyclodextrin products typically have a degree of substitution (DS) ranging from 4.0 to 8.0, meaning an average of 4 to 8 hydroxypropyl groups per cyclodextrin molecule. The exact DS value affects solubility, complexation efficiency, and other physicochemical properties. Buyers should verify the DS specification against their specific formulation requirements, as different substitution levels may yield different performance characteristics in inclusion complex formation.

Is hydroxypropyl gamma cyclodextrin suitable for injectable formulations?

Hydroxypropyl gamma cyclodextrin has demonstrated safety profiles in various routes of administration. However, injectable applications require material that meets additional specifications including endotoxin limits, sterility assurance, and stricter impurity controls. Commercial procurement teams should specify the intended route of administration when sourcing, as different grades are produced for oral, topical, and parenteral applications. For injectable use, verification of compliance with relevant pharmacopoeial monographs and regulatory requirements is necessary.
