Alpha Vs Beta Vs Gamma Cyclodextrin: How To Choose For Formulation Work

Drug delivery and product development constantly face a massive hurdle. We must overcome the poor aqueous solubility and chemical instability of active ingredients. Formulators often turn to cyclic oligosaccharides as a proven solution. They create robust inclusion complexes to protect sensitive molecules. However, picking the wrong parent molecule can spell disaster for your project. A mismatched cavity leads to sudden API precipitation. It causes suboptimal bioavailability in vivo. You might even face total failure during clinical scale-up.

This article provides a rigorous, evaluation-stage framework. We will help you choose between the three main parent rings. You will learn how to evaluate molecular fit and physical-chemical properties. We also cover crucial regulatory constraints and unit economics. By the end, you will confidently approach formulation selection. You can secure product stability and ensure a smooth path to commercialization.

Key Takeaways

• Cavity size dictates the match: Alpha cyclodextrin fits low-molecular-weight/linear molecules, beta fits aromatics, and gamma accommodates large, bulky guests like steroids or macrolides.

• Solubility is not linear: Beta cyclodextrin is the most commercially accessible but presents the lowest aqueous solubility, often requiring derivative alternatives for liquid formulations.

• Regulatory route matters: The choice heavily depends on the administration route (oral vs. parenteral), with strict EMA and FDA safety thresholds guiding excipient selection.

• COGS vs. Performance: Formulation selection requires balancing the low cost of beta cyclodextrins against the superior solubility and safety profiles of premium gamma variants.

The Cost of Poor Formulation Selection

Formulators face severe technical and commercial risks when they misalign inclusion complexes. You cannot simply guess the right cavity size. Mismatches waste research budgets and stall development timelines. Understanding these risks upfront prevents costly late-stage failures.

Thermodynamic instability: Incorrect cavity matching creates weak binding constants. The active ingredient might release prematurely before reaching the target absorption site. Sometimes, competitive excipients easily displace the drug from the cavity. Common flavorants or preservatives can sneak into a poorly matched ring. This ruins the controlled release profile entirely.

Manufacturing bottlenecks: A prototype might look perfect during a benchtop phase solubility study. Yet, it can fail spectacularly later. You risk scaling up a complex undergoing precipitation during pilot-plant cooling cycles. Sudden temperature shifts expose weak inclusion bonds. This forces expensive re-engineering and delays clinical trial material production.

Compliance delays: Regulatory bodies strictly monitor daily excipient intake limits. Selecting an inappropriate parent ring can easily exceed these thresholds for your target demographic. This financial blow stalls your commercial launch. You must align your material choice against published daily exposure limits from day one.

Structural Evaluation: Matching Cavity Size to the Guest Molecule

The foundational step of your project requires assessing steric fit and binding affinity. The host cavity must perfectly envelop the hydrophobic portion of the guest molecule. Too tight, and the drug cannot enter. Too loose, and the drug slips out.

Alpha Cyclodextrin (α-CD)

This variant features the smallest diameter, measuring approximately 0.47 to 0.53 nm. It contains exactly six glucopyranose units.

Ideal guest profiles: alpha cyclodextrin perfectly matches low molecular weight compounds. It readily accepts linear aliphatic chains and small aromatics. The narrow cavity provides a snug fit for slender lipophilic molecules.

Common applications: We often see it used for odor masking in oral liquids. It stabilizes volatile oils effectively. Laboratory teams also rely on it for selective extractions during complex chemical syntheses.

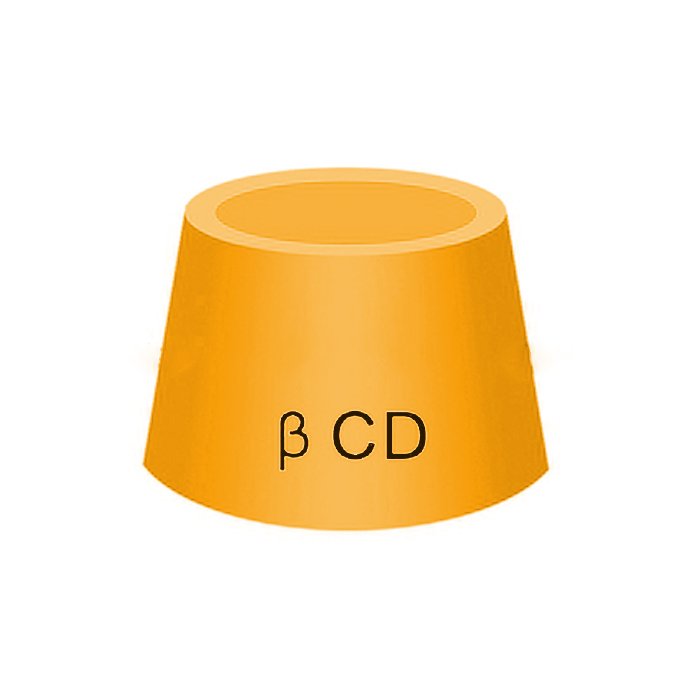

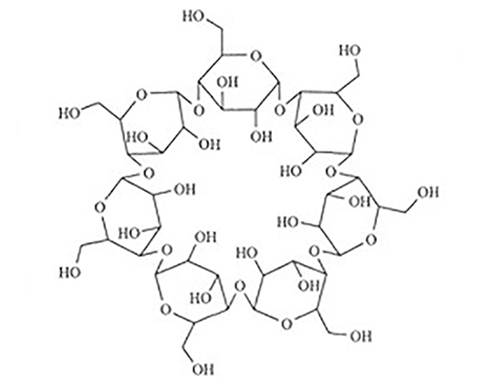

Beta Cyclodextrin (β-CD)

This host provides a medium diameter of roughly 0.60 to 0.65 nm. It consists of seven glucopyranose units forming a rigid cone.

Ideal guest profiles: beta cyclodextrin accommodates benzene rings beautifully. It fits heterocyclic compounds and standard aromatic drug molecules. Most commonly prescribed small-molecule drugs fit this cavity perfectly.

Structural limitations: It possesses a high tendency for self-aggregation. Strong intermolecular hydrogen bonding causes this aggregation. This characteristic limits its flexibility in certain liquid matrices and heavily impacts its solubility profile.

Gamma Cyclodextrin (γ-CD)

This option boasts the largest diameter. It measures about 0.75 to 0.83 nm and contains eight glucopyranose units.

Ideal guest profiles: You should use gamma cyclodextrin for bulky molecules. It handles macrocycles, steroids, and multi-ring structures seamlessly. When smaller rings fail to encapsulate a heavy API, this larger cavity provides the necessary space.

Performance advantage: It features a highly flexible structure. This flexibility allows for superior complexation when handling structurally complex APIs. It easily adapts its shape to maximize van der Waals interactions.

Navigating Solubility Trade-Offs in Aqueous Formulations

You might expect solubility to increase linearly alongside molecular weight. However, the three parent rings show a highly counterintuitive solubility profile. Formulators must understand this behavior to prevent disastrous liquid formulations.

The Beta Anomaly: Beta variants exhibit exceptionally low water solubility. They dissolve at approximately 1.85 g per 100 mL at 25°C. In stark contrast, the alpha form reaches 14.5 g per 100 mL. The gamma form achieves a massive 23.2 g per 100 mL. Strong intramolecular hydrogen bonds in the seven-membered ring form a rigid belt. This belt drastically reduces interaction capabilities between the ring and surrounding water molecules. The crystal lattice energy remains remarkably high, resisting dissolution.

Solid vs. Liquid Dosage Forms:

• Solid forms: Parent rings work exceptionally well for tablets and powders. Beta variants dominate this space. Immediate aqueous solubility matters less here than overall complex stability. You can easily utilize standard beta rings in direct compression blends or dry granulation processes.

• Liquid/Parenteral forms: Formulators must often abandon parent beta rings for liquid preparations. They pivot to chemically modified derivatives instead. Hydroxypropyl (HP) or sulfobutyl ether (SBE) derivatives achieve required dissolution rates. These substitutions disrupt the rigid hydrogen-bond network. They prevent dangerous precipitation in IV lines or concentrated oral suspensions.

Toxicity, Compliance, and EMA/FDA Regulatory Constraints

Safety profiles dictate excipient choices just as much as chemical compatibility. You must consult established pharmacopeial guidelines based on your target administration route. Ignoring regulatory limits guarantees a rejected filing.

Oral vs. Topical Safety: All three parent molecules generally exhibit excellent safety profiles. They work perfectly for oral and dermal applications. They show negligible systemic absorption through the gastrointestinal tract or intact skin. The human body tolerates them well when ingested, passing them through the digestive system largely unabsorbed until colonic microflora ferment them.

Parenteral Limitations: You face severe restrictions when injecting unmodified beta variants. They carry well-documented nephrotoxicity risks upon parenteral administration. They extract cholesterol from cell membranes. They also crystallize in the kidneys, causing severe renal damage. Consequently, regulatory agencies ban their use in systemic injections.

Gamma variants offer a massive advantage here. Salivary and pancreatic amylases rapidly degrade them. This enzymatic breakdown results in a highly favorable toxicological profile. You can safely administer higher doses systematically because the body quickly digests the eight-membered ring into simple sugars.

Regulatory thresholds: You must consult EMA and FDA guidelines carefully. They dictate allowable daily exposure limits for these excipients. You need to adjust your strategy based on the target patient population. Pediatric formulations have much stricter daily intake limits than adult demographics. Exceeding these limits forces you back to the formulation drawing board.

Scalability and Cost of Goods Sold (COGS)

Moving from technical viability to commercial reality requires strict financial scrutiny. Your excipient choice directly impacts profit margins and market competitiveness.

Raw Material Economics: Beta rings are mass-produced globally via highly optimized enzymatic conversions of starch. They represent heavily commoditized materials. This makes them the absolute default choice for budget-constrained projects. If your molecule fits the cavity and targets oral delivery, this option minimizes raw material costs. Procurement teams vastly prefer this route due to robust, multi-region supply chains.

Justifying Premium Options: Alpha and gamma rings require more complex enzymatic synthesis. Their production yields remain lower than their seven-membered counterpart. Consequently, they carry higher raw material costs. You must build a strong business case to justify this premium pricing.

How do we justify the extra expense? Formulators choose premium gamma rings to offset other formulation burdens. You might require lower overall API loading because the inclusion complex performs so efficiently. You might completely eliminate the need for harsh, expensive co-solvents. Sometimes, achieving a differentiated product claim justifies the cost. A crystal-clear liquid formulation often wins market share over a cloudy suspension. Premium rings ensure this clarity while preventing expensive stability failures during late-stage manufacturing.

A Step-by-Step Shortlisting Framework for Formulators

Research and development teams need a concrete action plan during the evaluation phase. Follow this methodical sequence to eliminate guesswork and accelerate your development timeline.

1. Step 1: In silico modeling. Use molecular docking software first. Calculate theoretical binding energies digitally. Predict the optimal cavity fit before you procure any raw materials. This saves weeks of wasted benchtop testing.

2. Step 2: Phase solubility studies (Higuchi-Connors). Execute preliminary lab tests across alpha, beta, and gamma variants. Generate phase solubility diagrams. Determine the exact stoichiometry (1:1 vs. 1:2 ratios). Calculate your stability constants (K-values). Watch carefully for A-type (soluble) versus B-type (precipitating) curves.

3. Step 3: Route-of-administration filter. Eliminate candidates aggressively. Discard any option failing strict regulatory guidelines for your specific delivery method. Never proceed with a parent beta ring for an IV formulation, regardless of how beautiful the binding data looks.

4. Step 4: Prototype stress testing. Subject your short-listed inclusion complex to severe thermal cycling. Run comprehensive freeze-thaw tests. Initiate long-term stability monitoring under accelerated ICH conditions. This step rules out any late-stage precipitation risks before scaling up.

Best Practices for Lab Execution: Always allow sufficient equilibration time during phase solubility studies. Some complexes take up to 72 hours to reach true thermodynamic equilibrium. Rushing this step produces artificially low solubility data.

Conclusion

Successful formulation work requires exact precision. It requires aligning the molecular dimensions of your active ingredient with the host cavity. You must navigate the specific physical and regulatory profiles of your chosen excipient. Guesswork leads directly to compromised stability and rejected regulatory filings.

We encourage formulators to base final decisions on rigorous empirical data. Combine your phase solubility results with target product profile (TPP) requirements. Maintain strict adherence to daily excipient intake limits outlined by the EMA and FDA.

To move forward successfully, take these action-oriented next steps:

• Run computational docking models for your API to predict the best cavity size before ordering lab supplies.

• Conduct parallel phase solubility testing across all three parent rings to establish a definitive baseline.

• Cross-reference your target patient demographic against official regulatory monographs to confirm daily exposure safety limits early in development.

FAQ

Q: Can parent beta cyclodextrin be used in injectable formulations?

A: No, unmodified beta variants pose severe nephrotoxicity risks when injected. They form insoluble cholesterol complexes and rapidly crystallize in the kidneys, causing damage. Regulatory bodies strictly forbid their parenteral use. Formulators must switch to highly soluble, chemically modified derivatives like HP-β-CD or SBE-β-CD for safe intravenous administration.

Q: How do I know if my molecule requires gamma cyclodextrin instead of beta?

A: You should evaluate steric hindrance and molecular weight. Bulky guests, macrocycles, and multi-ring steroids often exceed the beta cavity capacity. If your initial phase solubility studies show exceptionally poor binding constants or immediate precipitation with beta variants, pivot immediately to the larger gamma cavity.

Q: Does the choice of cyclodextrin affect the release rate of the active ingredient?

A: Yes, it strongly dictates release rates. The binding constant (K-value) of your inclusion complex determines how tightly the host holds the guest. A higher binding affinity slows down the in vivo dissociation rate. This creates a more sustained, controlled release profile for the active ingredient.

Q: What should I do if my phase solubility study shows a B-type curve?

A: A B-type curve indicates limited aqueous solubility of the inclusion complex itself. The complex precipitates out of solution as concentration increases. You should pivot to a more soluble parent ring, like gamma, or transition to highly soluble modified derivatives to achieve the required concentration safely.
